Internal microphone not being detected pleaseee helppp
from crash_thepose@lemmy.ml to linux@lemmy.ml on 04 Jul 20:12
https://lemmy.ml/post/32703081

Hello all- I am seeking help trying to figure out why my internal microphone isn’t being detected. I have followed a lot of troubleshooting audio guides such as this one and none of it has worked.

I’m on Pop_OS, with wayland, on an Asus laptop,

Here is more info if anyone could by chance help me

arecord -l

**** List of CAPTURE Hardware Devices ****
card 0: PCH [HDA Intel PCH], device 0: ALC294 Analog [ALC294 Analog]
  Subdevices: 1/1
  Subdevice #0: subdevice #0

systemctl --user status pipewire

● pipewire.service - PipeWire Multimedia Service
     Loaded: loaded (/usr/lib/systemd/user/pipewire.service; enabled; vendor preset: enabled)
     Active: active (running) since Thu 2025-07-03 15:19:48 EDT; 24h ago
TriggeredBy: ● pipewire.socket
   Main PID: 2192 (pipewire)
      Tasks: 3 (limit: 18486)
     Memory: 16.4M
        CPU: 15.088s
     CGroup: /user.slice/user-1000.slice/user@1000.service/session.slice/pipewire.service
             └─2192 /usr/bin/pipewire

Jul 03 15:19:48 pop-os systemd[2182]: Started PipeWire Multimedia Service.
Jul 03 15:19:48 pop-os pipewire[2192]: mod.jackdbus-detect: Failed to receive jackdbus reply:>
lines 1-13/13 (END)

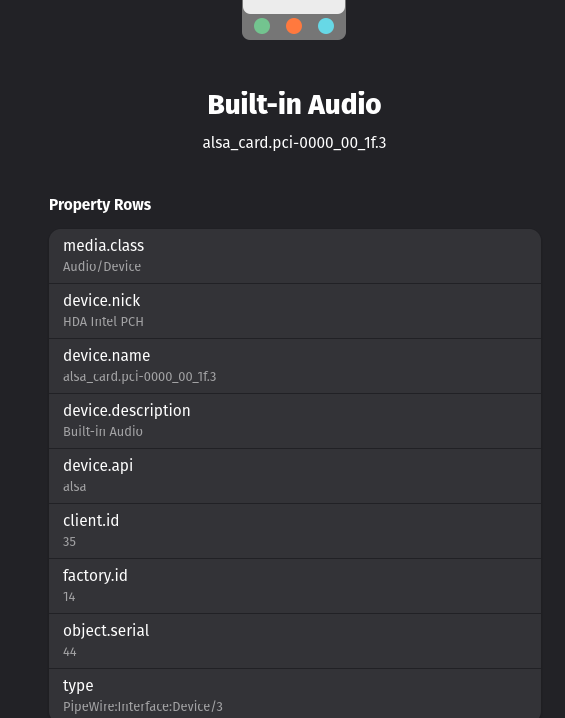

some more info: https://pastebin.com/embed_js/6vR5ZEXw

![]

I am new to linux so please don’t make fun of me too much if what i’m sharing doesn’t make any sense!!

#linux

threaded - newest

Novocirab@feddit.org on 04 Jul 20:25 next collapse

Do any of

alsactl clean 0
alsactl clean 1
alsactl clean 2

do anything for you? (The numbers are for sound card 0, 1, and 2. It looks like, if anything, only 0 would be relevant for you, but you can try the others just in case.)

This command cleans the controls created by applications.

manpages.ubuntu.com/manpages/…/alsactl.1.html

crash_thepose@lemmy.ml on 04 Jul 21:25 collapse

I tried and it didn’t do anything :( I am curious if i did something wrong with setting up wireplumber vs pipewire or pulseaudio or something?

Novocirab@feddit.org on 04 Jul 21:35 collapse

It was a bit of a long shot experiment to begin with. The commands I posted can be useful when an audio device suddenly stops working after it has been working initially during a session, but since your problem is most likely about your device not being recognized at any time, it’s not too surprising that they don’t do much. Just worth the try.

crash_thepose@lemmy.ml on 04 Jul 21:39 collapse

thats good to know. thank you so much!

stsquad@lemmy.ml on 04 Jul 20:27 next collapse

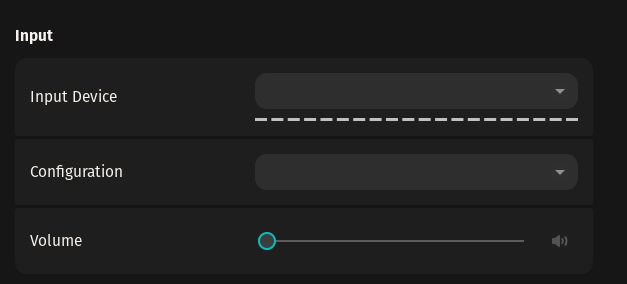

What do the inputs and configuration drop down menus say?

crash_thepose@lemmy.ml on 04 Jul 21:01 collapse

There’s no option. they are greyed out.

486@lemmy.world on 04 Jul 20:38 next collapse

It is probably due to this change in the Linux kernel. That broke analogue microphone inputs on lots of systems. After that change, there were quite a few additional patches fixing those problems on individual systems (e.g. this one), but there are still lots of broken setups around. I have no idea what the original change was about exactly. It appears to have broken more things than it has fixed, but what do I know.

crash_thepose@lemmy.ml on 04 Jul 21:02 collapse

even with an internal microphone?

486@lemmy.world on 04 Jul 22:03 collapse

Yes. Apparently the issue happens with both internal mics and mic connectors where you attach your own mic. The seconds link I provided points to a fix for a specific laptop that fixes a non-working internal mic.

just_another_person@lemmy.world on 04 Jul 21:09 collapse

What’s the exact model number of this Asus laptop?

crash_thepose@lemmy.ml on 04 Jul 21:25 collapse

ASUSTeK COMPUTER INC. ASUSLaptop_Q530VJ

I’m trying to see if maybe i’ve done something where I have pipewire, pulseaudio, wireplumber all set up at the same time? I also don’t really understand the difference between them

just_another_person@lemmy.world on 04 Jul 22:53 collapse

Okay, so this is one of Asus’s consumer models that fits in the “Windowstop” category, meaning a lot of the hardware is going to be windows-only for various reasons.

It’s got an ALC272 which IS supported, but that doesn’t mean the microphone will be, especially if it’s on the USB bus for whatever reason.

Couple questions:

  1. Do other microphones work, just not internal?
  2. Does your volume control work as expected
  3. Does the webcam work, and does the internal microphone work only when the webcam is engaged?
  4. What do apps like Discord or Zoom detect as available for your inputs?

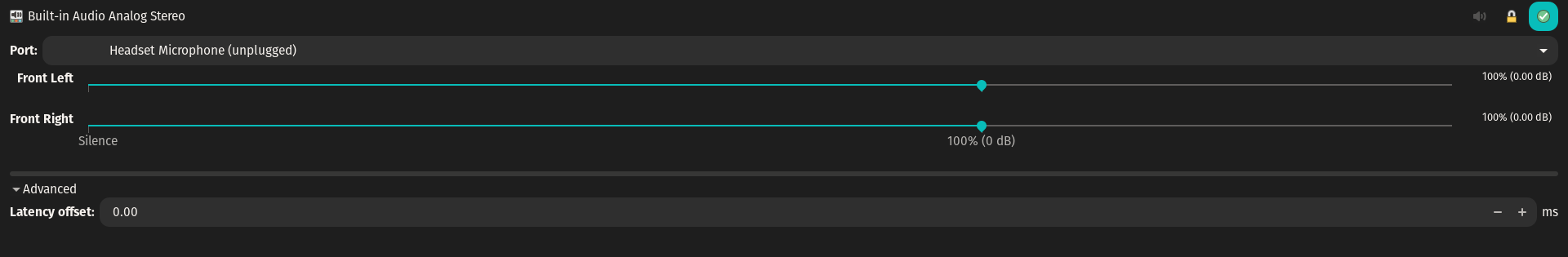

As a test, install pavucontrol and qasmixer. Open pavucontrol, and check ALL the input settings (there are many combos). If nothing there shows activity, launch qasmixer, select the ‘hw’ view on the right, then try selecting different mixers and see if one finally clicks.

If any of these are successful, your mic is detected, and your mixer settings are messed up so it’s not being enabled as an input sink.

If none of these work, you’re going to have to dig restart, then run sudo dmesg and grep through looking for information regarding audio devices, or similar errors to see if it can’t detect it.

From the product specs, it looks like it might have Harmon Kardon speakers, which may also tie into the microphone, and that’s going to be problematic if it’s a USB device for a number of reasons I won’t dive into. Overall, this model just seems to be problematic from digging around. Example: reddit.com/…/asus_creator_laptop_q530v_constant_p…

crash_thepose@lemmy.ml on 05 Jul 02:01 collapse

The thing that’s weird is that my mic used to work just fine!

just_another_person@lemmy.world on 05 Jul 02:09 collapse

Then I would try the above and make sure you don’t have a mixer confused somewhere.
